N Fold 45g/m2 22kw Tissue Paper Making Machine Hand Towel PLC

Name: N Fold 45gm2 22kw Tissue Paper Making Machine Hand Towel PLC
Brand: YU SHENG DA
Price: 1 USD

China N Fold 45g/m2 22kw Tissue Paper Making Machine Hand Towel PLC wholesale

Brand Name : YU SHENG DA

Model Number : YD-PT-I

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, T/T

Delivery Time : 50 work days after down payment

Packaging Details : Wooden Packing

Fold Type : N Fold

Speed : 1000 Sheets Per Min

Embossing : Steel to Steel

Frequency Converter : Delta

Pneumatic Parts : AIRTAC

Photoelectrical switch (magic eye) : Omron

Voltage : 380V, 50 HZ OR CUSTOMERIZED

Dimension(l*w*h) : 6200*2000*1800mm

After-sales service provided : Engineers available to service machinery overseas, Video technical support, Online support, Field maintenance and repair service, Field installation

Condition : NEW

Warranty : One year

Power(w) : 7.5KW

Product type : Paper Towel Machine

Processing type : Paper Towel Machine

Contact Now

Hand Towel Tissue Paper Making Machine With Packing Machinery

Main Features :

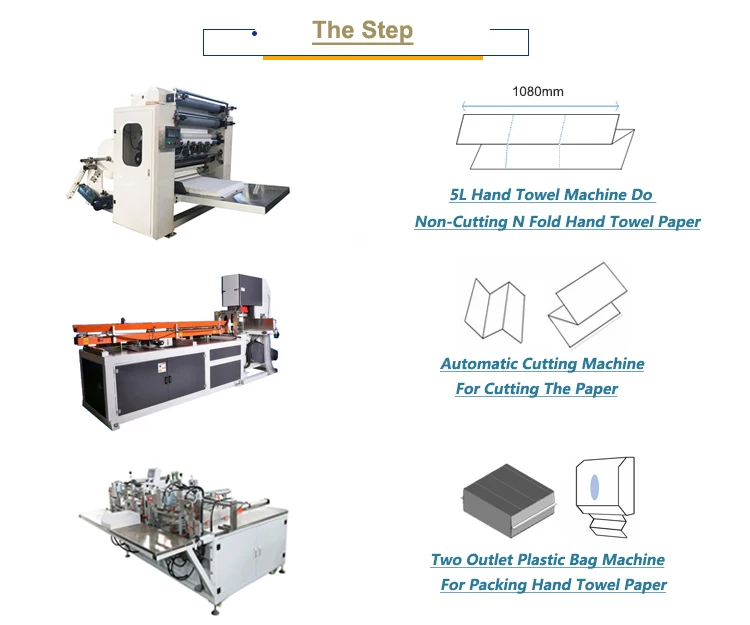

N Folding Hand Towel Paper Making Machine process paper material to embossing,cutoff and interfold into "N" type. It can be continuous drawing one by one when using.The final products are widely used in hotels, office and kitchen,etc. for hands cleaning. Health and convenient.This machine can apply to folding, slitting, counting together with high speed and output orderliness.

. Production Speed:(60-100) m/min x3
. Steel to steel embossing unit
. Pneumatic broken paper and automatic separation, Convenient to wear paper.
. Using synchronous belt transmission with lower noise. The transmission ratio is accurate.
. Base Paper adopt range:33-45g/m2 (single ply).
. Two layers with glue lamination can be ordered by customers.

Model	N-2L/3L/4L/5L/6L
Finished Products Size	230L*230±2MM
Raw Material Width	460mm	690mm	920mm	1150mm
Raw Material Core Diameter	76.2mm
Speed	0-100m/min (depending on the machine model)
Power	Frequency conversion speed regulator
Programmable controller	PLC computer controller
Folding Type	Vacuum suction N fold
Transmission unit	Timing Belt
Counter	Ink Marked
Embossing Unit	Steel to steel
Slitting Unit	Pneumatic dot slitting
Pneumatic System	3HP Air Compressoor, mini air pressure 5kg/cm2pm (Provider by customer)
Total Power	11kw	15kw	15kw	22kw
Dimension	4000(1700-2500) 1900mm ,Depend on the size and configure
weight	2-5 tons, Depend on the size and configure
